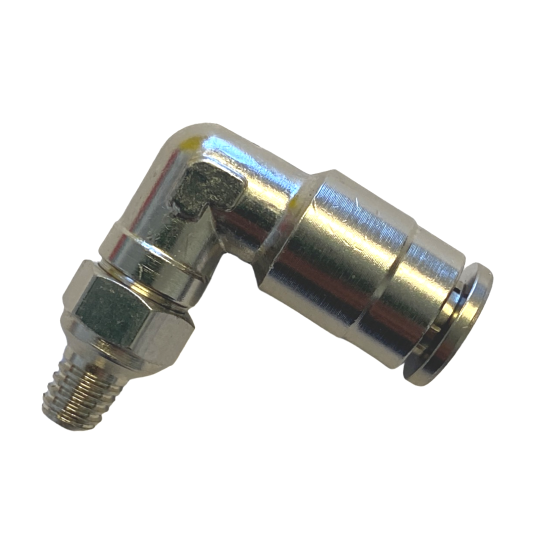

6mm x M6 Push-In Elbow 90°
Plated brass 90° push-in elbow for 6mm tube to M6 male thread.
A tidy connector for lubrication and compressed-air/pneumatic lines where you need a clean 90° turn.
| System: Multi-Systems |
| Material: Plated Brass |
| Tube Size: 6 mm |
| Thread Size: M6 |
| Hex Size: 12mm |
| Body Size: 10mm |
Internal Reference:
A1632005
Common uses
This plated brass 90° push-in elbow that connects 6mm OD tube to an M6 male thread (fits an M6 female port). Used when you need a clean, compact 90° connection.
- Central lubrication line plumbing (grease and oil systems)
- Compressed air / pneumatic control lines
- Small automation / packaging machinery
- Light-duty vacuum or test bench set ups (confirm compatibility and ratings for your application)
Fitting notes
- Tube: 6mm OD push-in (standard 6mm OD pneumatic/lubrication tube)
- Thread: M6 male
- Material: Plated brass
- Our part ref: A1632005
Tip: If your port is BSP/NPT (not metric), this won’t fit — check thread type before ordering.
Quick install tip
Cut tube square, push fully home, and give a gentle pull-back check to confirm it’s locked in.
Not sure this is the right fitting?
Send us a photo of the port/thread and your tube size and we’ll confirm the match.
- Email: info@lsltd.co.nz
- Phone: 0800 500 440
Or use the Contact Us form
